Summary

This article provides instructions to find and update the Wi-Fi Network Name (SSID) and Password for customers with the Wi-Fi 6 router from OnBox.

Find the Current SSID and Password

A label is affixed to the bottom of the router with the current SSID and Password.

Note that the router has both a 2.4G and a 5G SSID, and the default password is the same for both.

Change the SSID and Password

Use the following steps to change the SSID and Password of the OnBox Router.

Steps

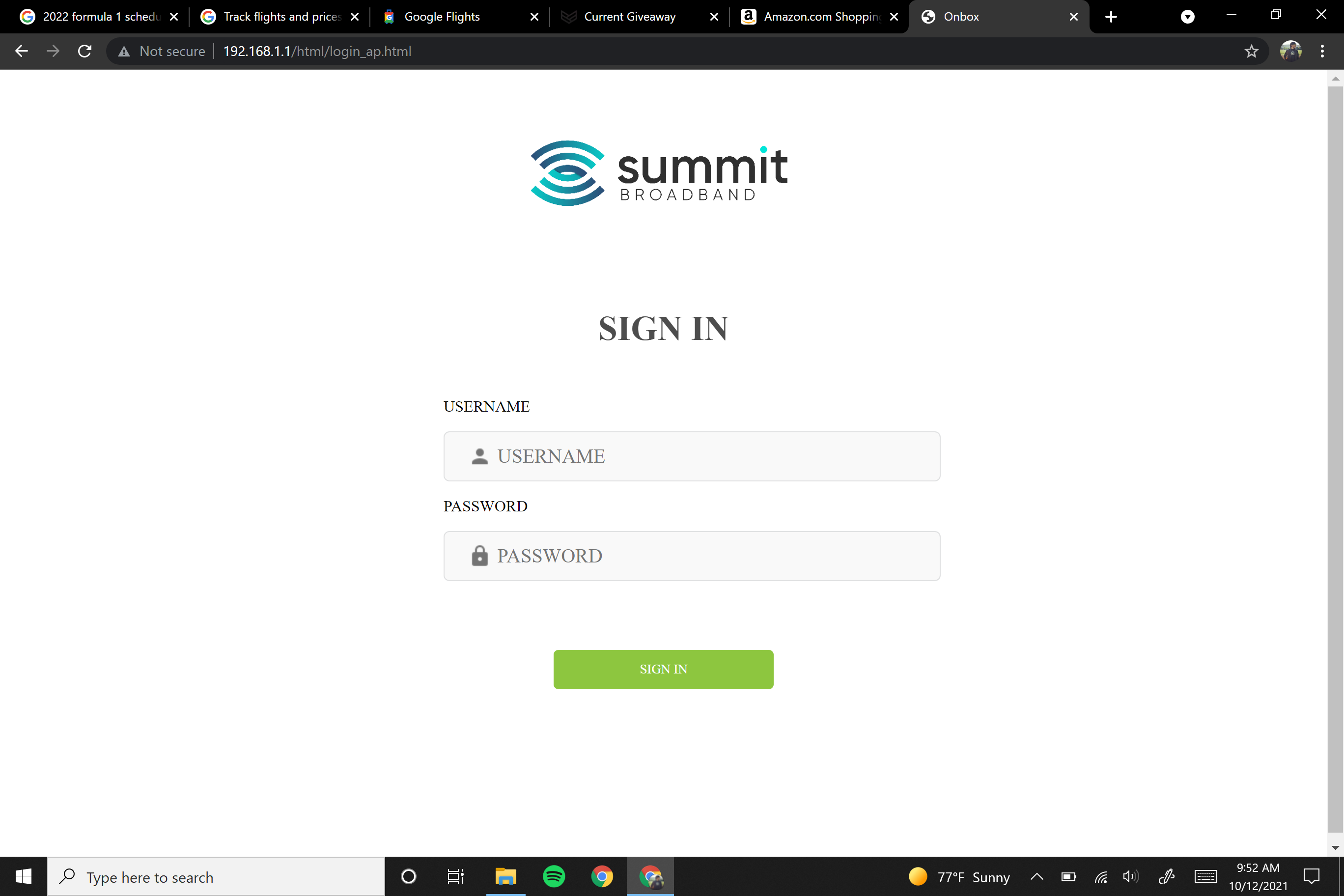

1. Open a browser page. In the location bar, enter http://192.168.1.1 Note that the Sign In page may feature the Summit Broadband logo at the top (if it is a router you are leasing from Summit Broadband), or it may display the OnBox logo (if it is a router you purchased from a store).

2. Enter the Administrator username (admin) and password (xxx) in the indicated boxes and click Sign In.

3. The landing page displays.

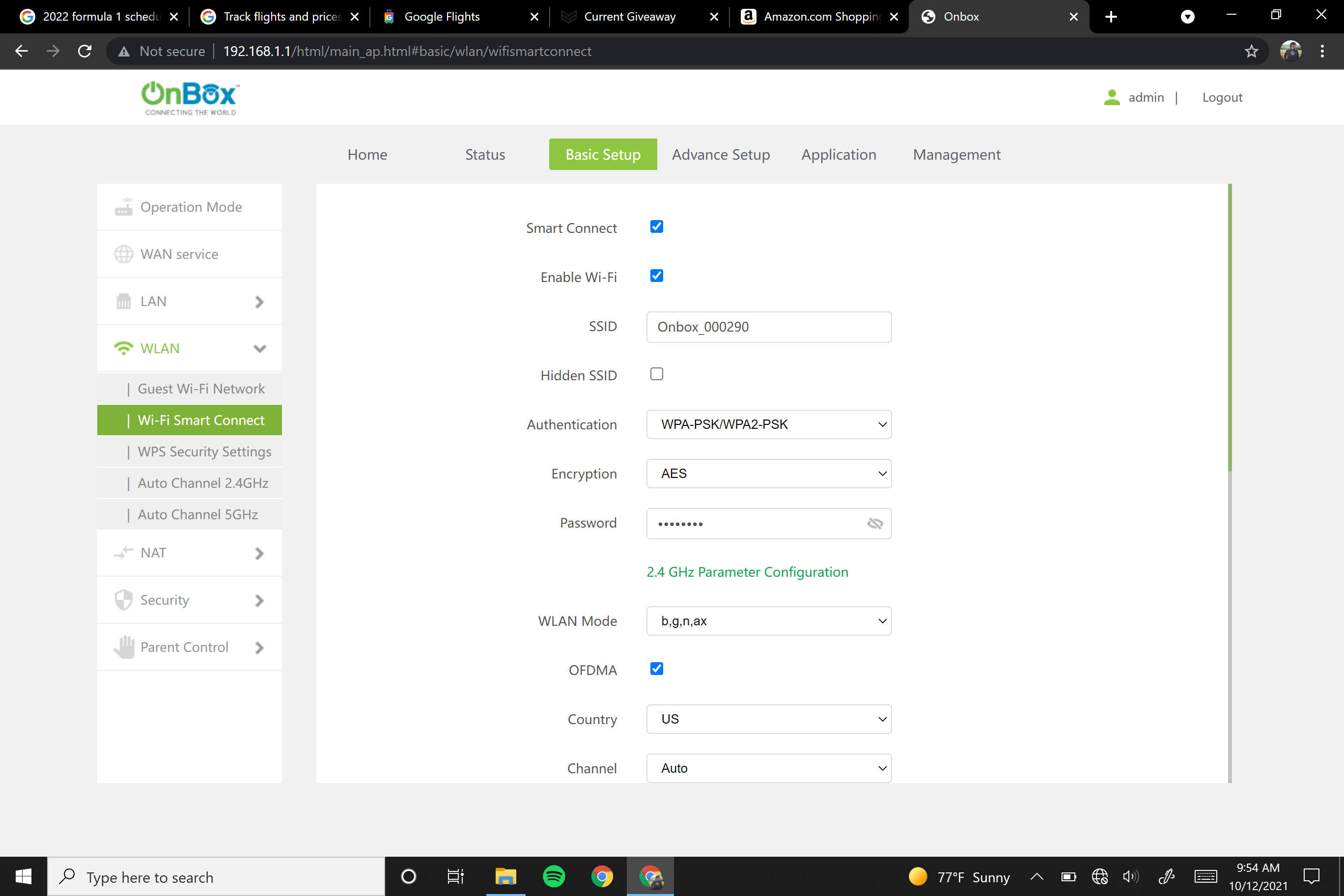

4. From the landing page click Basic Setup from the top menu. From the left side menu select WLAN. From the WLAN menu select Wi-Fi Smart Connect.
   NOTE: If you need to set different SSIDs and Passwords for the 2.4 GHz and 5 GHz radios, uncheck the Smart Connect checkbox (see Step 7).

5. Enter the new network name in the SSID box. Enter the new password in the Password box.
6. To save the new SSID and Password, scroll to the bottom and click Save.
   NOTE: Ensure the Authentication is set to WPA-PSK/WPA2-PSK and the Encryption is set to AES.

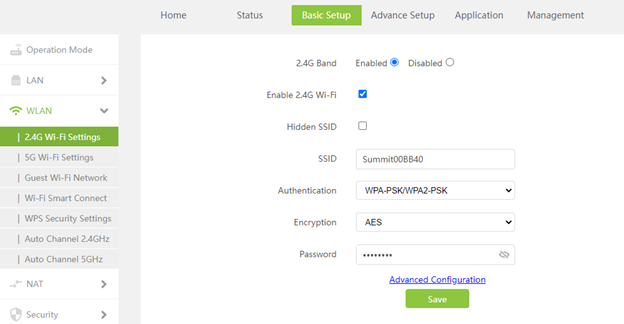

7. If you need to disable Wi-Fi Smart Connect and change the SSID and Password for each network, repeat Steps 4 - 6 for each of the 2.4G, 5G, and Guest Wi-Fi tabs.
